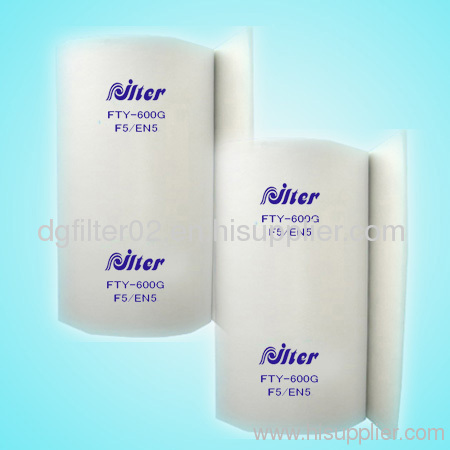

ceiling filter spray booth spray paint systerm
Payment Terms: |
T/T,L/C |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
FTY-600
Production Capacity:
50000rolls/month
Type:
Others
Brand Name:
FTY
Efficiency:
96%
Medium Material:
Synthetic Fiber
final resistance:
80degree
width:
1.6/2m
Means of Transport:
Ocean
Packing:
PE package
Certification:
Others
Condition:
New
Filtration Grade:
Hepa Filter
Filtration grade:
terminal filtration
length:
14/20/21m
thickness:
23mm
600G
1. High Efficiency
2. Large Dust holding capacity
3. Long working life
4. Weight:600g
5. With fully impregnated glue
lThis product is used for terminal filtration in the surface spray-paint industry, especially in the spray booth
lIt's processed by anti-break synthetic fiber with gradual density. Fully impregnated adhesive treatment and backing with net or cloth to reinforce the material, to increase it's efficiency and extend it's working life
lAdhesive treatment makes the particles unable to pass the material, uniform the air flow, create a perfect spray condition
lFilter particles: ≥1μm
lNon-flammability standard: DIN53438 F1,Temperature resistance: 80℃
Dimension | Rated air velocity (m/s) | Initial pressure dr op(Pa) | Rated air flow (sq.m/h) | Efficiency | Dust holding capacity (g/sq.m) | Final pressure(Pa) | EN779 | Weight |
Length(m) | Width(m) | Thickness(mm) |
14/20/21 | 1.6/2 | 23 | 0.25 | 25 | 950 | 96% | 550 | 450 | F5 | 600g |
